Price range: $9,500.00 through $12,880.00
This advanced system optimizes laboratory throughput by utilizing vacuum dehydration to significantly speed up sample processing without compromising tissue integrity. Safety and clarity are central to its design; an integrated filtration system actively removes harmful gases from the environment, while transparent cylinders allow for effortless reagent replacement and real-time specimen monitoring. To ensure operational longevity, the unit features intelligent obstacle detection that automatically stops the machine to prevent mechanical damage. Finally, with 10 customizable programming options, the device offers the ultimate user flexibility to handle a diverse range of protocols with ease.
Conduct Science is a premier manufacturer of research infrastructure, born from a mission to standardize the laboratory ecosystem. We combine industrial-grade precision with a scientist-led tech-transfer model, ensuring that every instrument we build solves a real-world experimental challenge. We replace "home-brew" setups with validated tools ranging from microsurgical suites to pathology systems. With a track record of >1,600 institutional partners and hundreds of citations, our equipment is engineered to minimize human error. We help you secure more data for less of your budget, delivering the reliability required for high-impact publication.

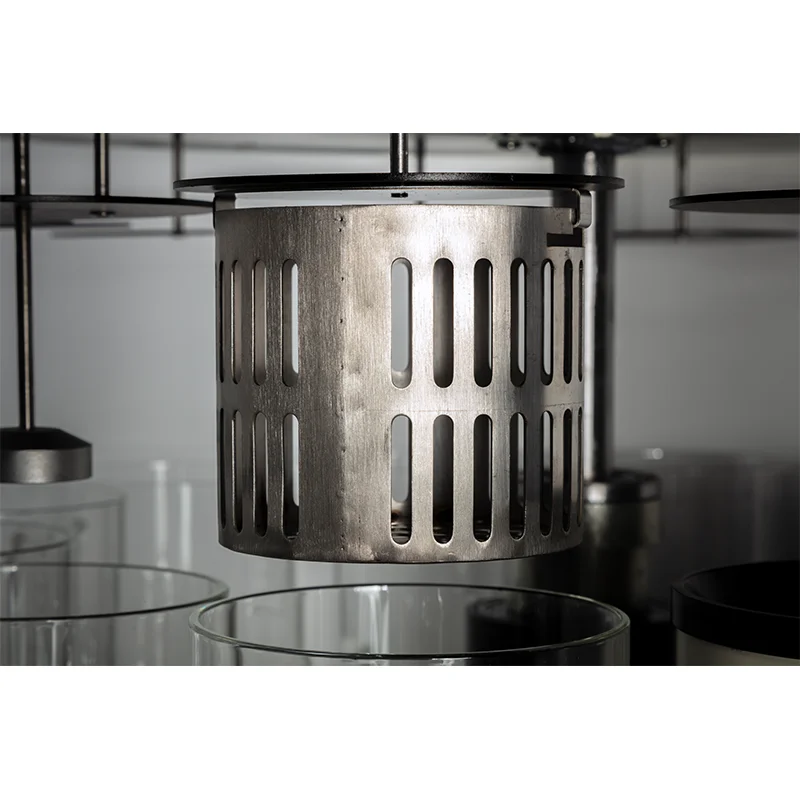

1. The sample basket has a built-in rotation function, rotating every five minutes to ensure thorough mixing of the sample with reagents, resulting in more complete reactions.
2. The reagent cylinder is made of transparent glass with handles, facilitating the retrieval and replacement of reagents. It also provides visualization of the specimen’s status during dehydration.
3. The equipment is equipped with two limiters: internal software limits and external mechanical limiters, preventing dangerous component damage in case of malfunctions.
4. The equipment features an obstacle detection sensor that promptly stops operation upon encountering obstacles, preventing damage to experiments and the machine itself caused by unmelted paraffin or other foreign objects.
5. When replacing the reagent cylinder, the equipment pauses for 5 seconds at the top to allow excess liquid to drip off, preventing reagent spillage.
6. It comes with 10 built-in programming options, offering users more choices.
7. The equipment includes a power-off protection system that resumes operation from the memory position upon power restoration.
Ā
8. Users can switch between manual and automatic modes according to their needs.
9. Users can set a delayed start time, with the option to delay up to 30 days, to accommodate specific scheduling requirements.
| RF-RD-501 Auto Tissue Processor with Vacuum | ||||
|---|---|---|---|---|

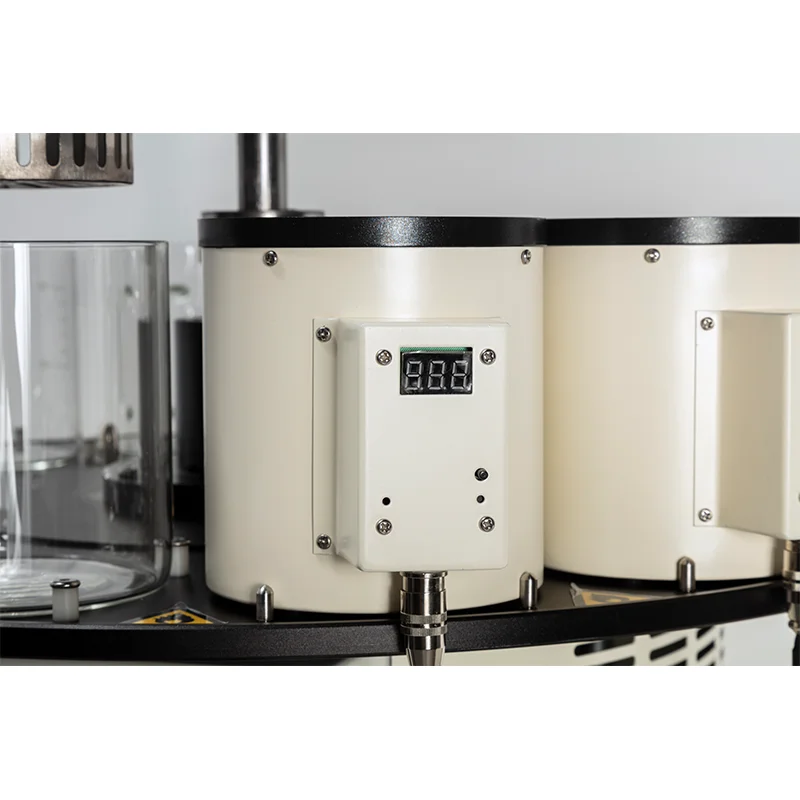

| Number of reagent cups | 12 - Reagent cups: 9 Paraffin cups: 3 | |||
| Reagent cup volume (optional configuration) | Volume | Paraffin cup capacity | Number of cassettes | |
| 1.3L Single basket | 1L | 50 | ||
| 1.3L Double basket | 100 | |||
| 2.3L Single basket | 2L | 100 | ||
| 2.3L Double basket | 200 | |||
| Paraffin cup temperature range | 0-85Ā°C | |||
| Reagent cup work time setting range | 0-2000min | |||
| Draining time | 30s | |||
| Frequency of basket stirring | 5min/time 1min once | |||
| Operating temperature/humidity | Working temperature: Rt~70Ā°C | |||
| Operating temperature 15Ā°C~40Ā°C | ||||
| Humidity 20-80% non-condensing | ||||
| Product Size | Ī¦680* (800-720) / Ļ780* (800-720) mm | |||
| Weight | 65KG/75KG | |||
| Voltage | 220V 50Hz / 110V 60Hz | |||
| Power | 300W | |||
| Wax heating power: 80w/pc | ||||
| Basket rotation power: 4w/pc | ||||
| Lifting motor power: 25w | ||||
| Rotation motor power: 14w | ||||
| Fuse | Ī¦5*20mm, 10A AC 120V | |||
| Certification | CE; ISO; 13485 | |||
| Brand | CONDUCTSCIENCE - Accept OEM | |||
| Warranty | 2 years, lifetime technical support | |||
| Customize needs | According to communication | |||
| Packing size / weight | 115KG 105*80*78CM | |||
| 140KG 120*90*79CM | ||||
