Description
Features

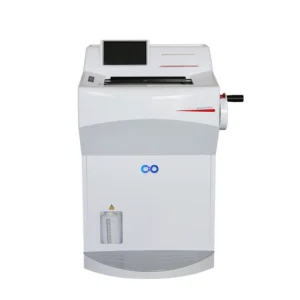

1. The cryostat microtome machine have a big advantage, use LED touching screen to display total number of section and total trimming thickness, section thickness, specimen retraction value, temperature control and date, time, temperature adjust, switch on/off, etc. It also can set Chinese and English operation interface conversion mode.
2. Standby mode: starting standby mode, the temperature in cryostat chamber can be controlled between -1Ā°C and -9Ā°C automatically; stop this mode, system will restore working temperature within 15 minutes.
3. The frozen microtome machine with two German original Danfoss brand compressors. Special cooling for chamber, for freezing shelf, for knife blade, and the specimen,also with protection bar on the blade holder to protect operator.
4. UV sterilize function.
5. With waste tray and storage rack in chamber.
Technical Parameters
| Category | Characteristic | Specification |
|---|---|---|
| Parameter | Section thickness range |
1-100 Āµm adjustable 1-20 Āµm increment: 1 Āµm 20-40 Āµm increment: 2 Āµm 40-100 Āµm increment: 5 Āµm |
| Trimming thickness range |
5-500 Āµm adjustable 5-50 Āµm increment: 5 Āµm 50-100 Āµm increment: 10 Āµm 100-500 Āµm increment: 50 Āµm |
|
| Specimen retraction |
0-90 Āµm adjustable 0-60 Āµm increment: 5 Āµm 60-90 Āµm increment: 10 Āµm |
|
| Maximum specimen size | 55*80 mm | |
| Horizontal stroke | 22 mm | |
| Vertical stroke | 72 mm | |
| Freezing chamber temperature | -10 Ā°C to -40 Ā°C adjustable | |

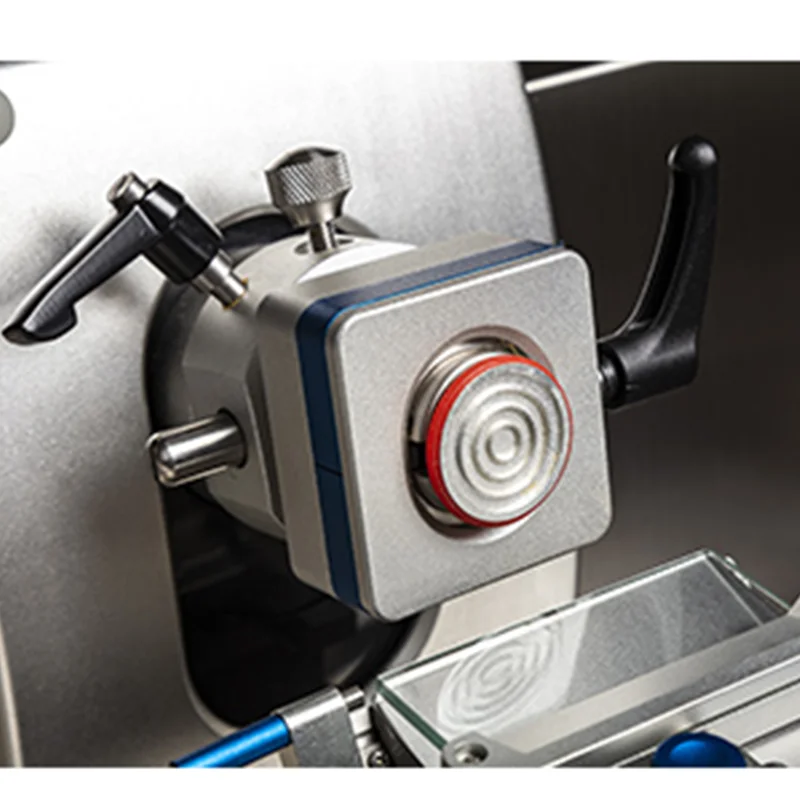

| Specimen head rotary angle | X-axis, Y-axis: 12Ā°; Z-axis: 360Ā° | |

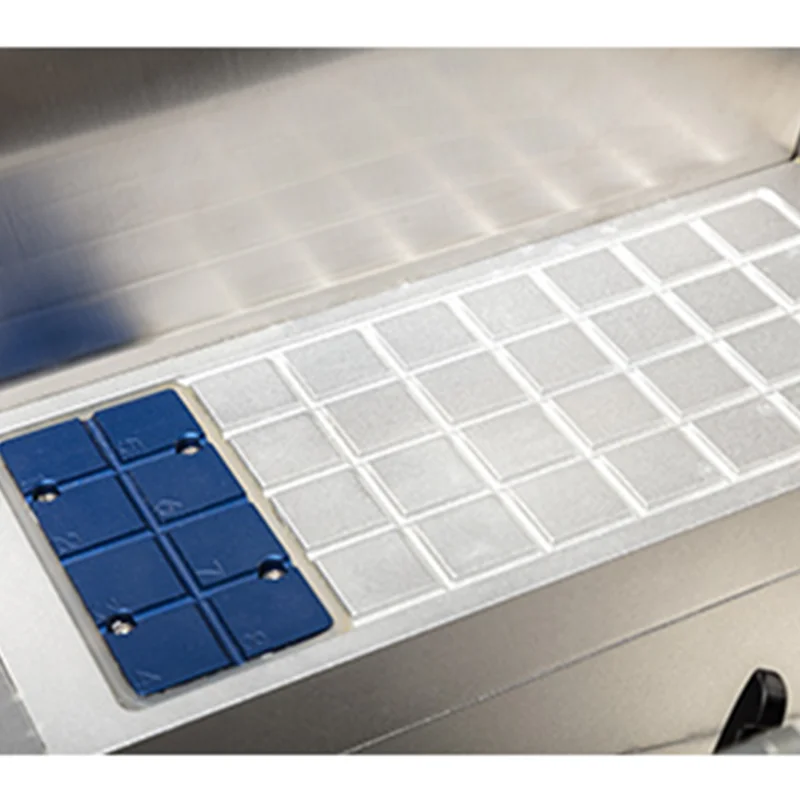

| Feature | Freezing shelf | Minimum freezing shelf temperature: -45 Ā°C Number of freezing stations: 28 |
| Peltier | Peltier Feature | Minimum Peltier shelf temperature: -65 Ā°C Number of freezing stations: 2 Working time to reach -60 Ā°C: 15 min |
| Compressor type | Compressor | Double Danfoss compressor |
| Dimension | Net weight | 150 kg |
| Size | 800*700*1190 mm | |
| Gross weight | 175 kg | |
| Packing size | 880*820*1480 mm | |
| Technical Data | Voltage and frequency | AC220VĀ±10%, 50Hz (Standard); AC110VĀ±10%, 60Hz |
| Power | 500W | |
| Noise | 50 Db(A) | |
| Refrigerant | R404A | |
| Safety | Type for blade holder | Yes |
| Handwheel lock | 16 positions locked | |
| Others | Certification | CE |
| Other remarks | OEM/custom-made accepted | |
| Waste Cleaner | YES |
